- Compact Low-Profile Design
- Continuous 360° rotation
- 65mm through bore
- High resolution encoder
- Precision index mark for homing
- Direct drive brushless servo motor
The RTS-DD Series Rotary tables are compact, direct drive, precision positioning tables designed for laboratory, factory automation and semiconductor processing equipment.
| Product Family | RTS |
| Additional Options | No Additional Options |
| Hub Material | Aluminum |
| Diameter | 200 |
| Drive Type | Direct Drive |
| Encoder | Glass Disk, 21600 Line Pairs |
| Interpolation | 25X |
| Precision Class | Standard Precision |
| Repeatability (arc-sec) | 3 |
| Resolution | 0.6 |
| Continuous Velocity (deg/s) | 1460 |
| Axial Runout (μm) | 10 |
| Continuous Torque | 3.44 |
| Encoder Output | A quad B, index |
| Force X (N) | 250 |
| Force Y (N) | 250 |
| Force Z (N) | 500 |

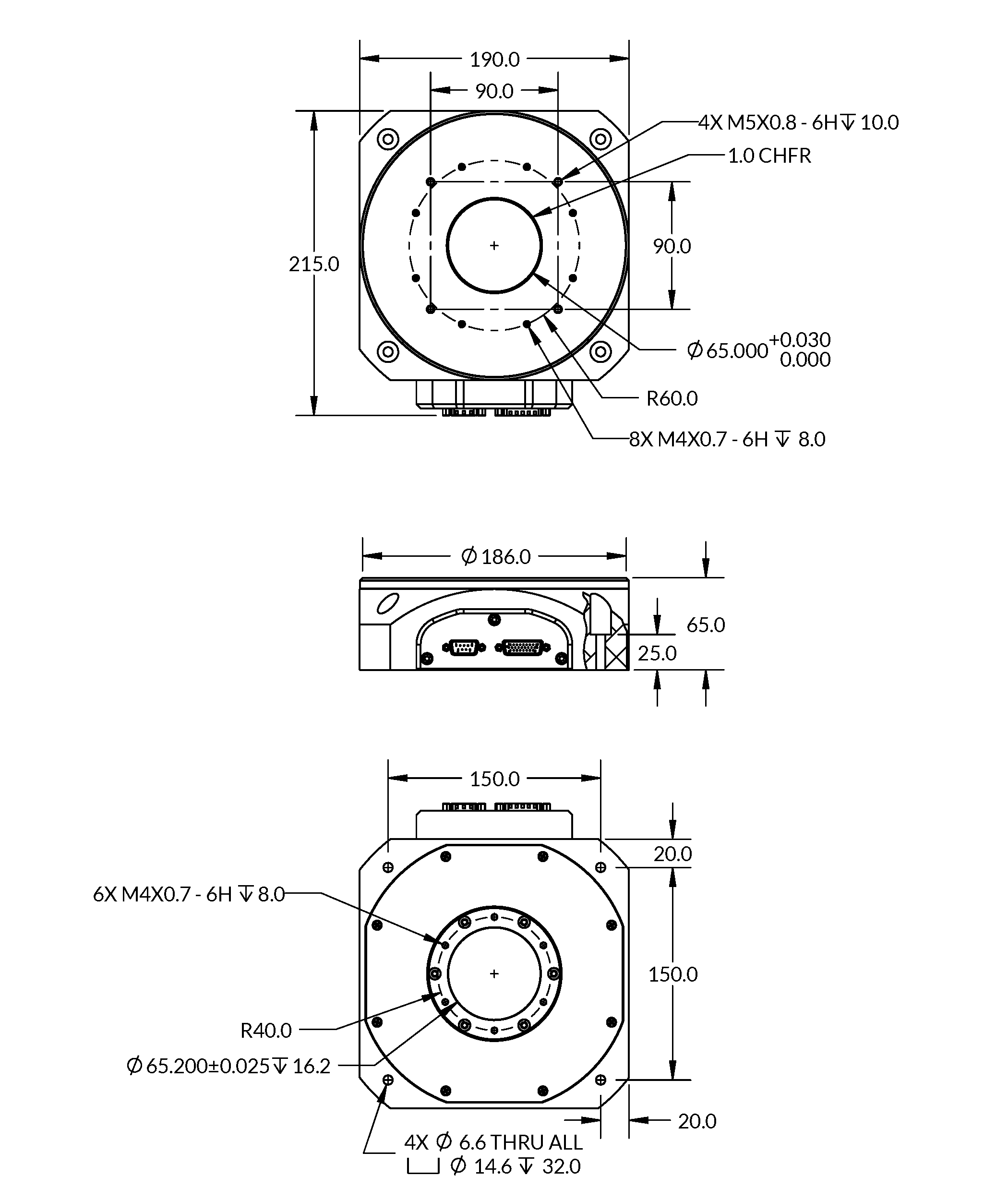

| Height (mm) | 65 |
| Length (mm) | 215 |
| Limit Switches | No |
| Accuracy (arc-sec) | 30 |
| Moment X (N·m) | 25 |
| Moment Y (N·m) | 25 |
| Encoder Resolution | 0.600 (2160000cts/rev) |
| Peak Torque (N·m) | 6.88 |
| Radial Runout (m) | 10 |
| Rotational Inertia (kgm) | 0.00659 |
| Stage Mass (kg) | 4.76 |
| Travel Range (deg) | 360 continuous |
| Width (mm) | 190 |
| Wobble | 10 |
