- High capacity
- 1000mm travel
- Ironcore linear servo motor
- Optical limit switches
- Index mark at center travel

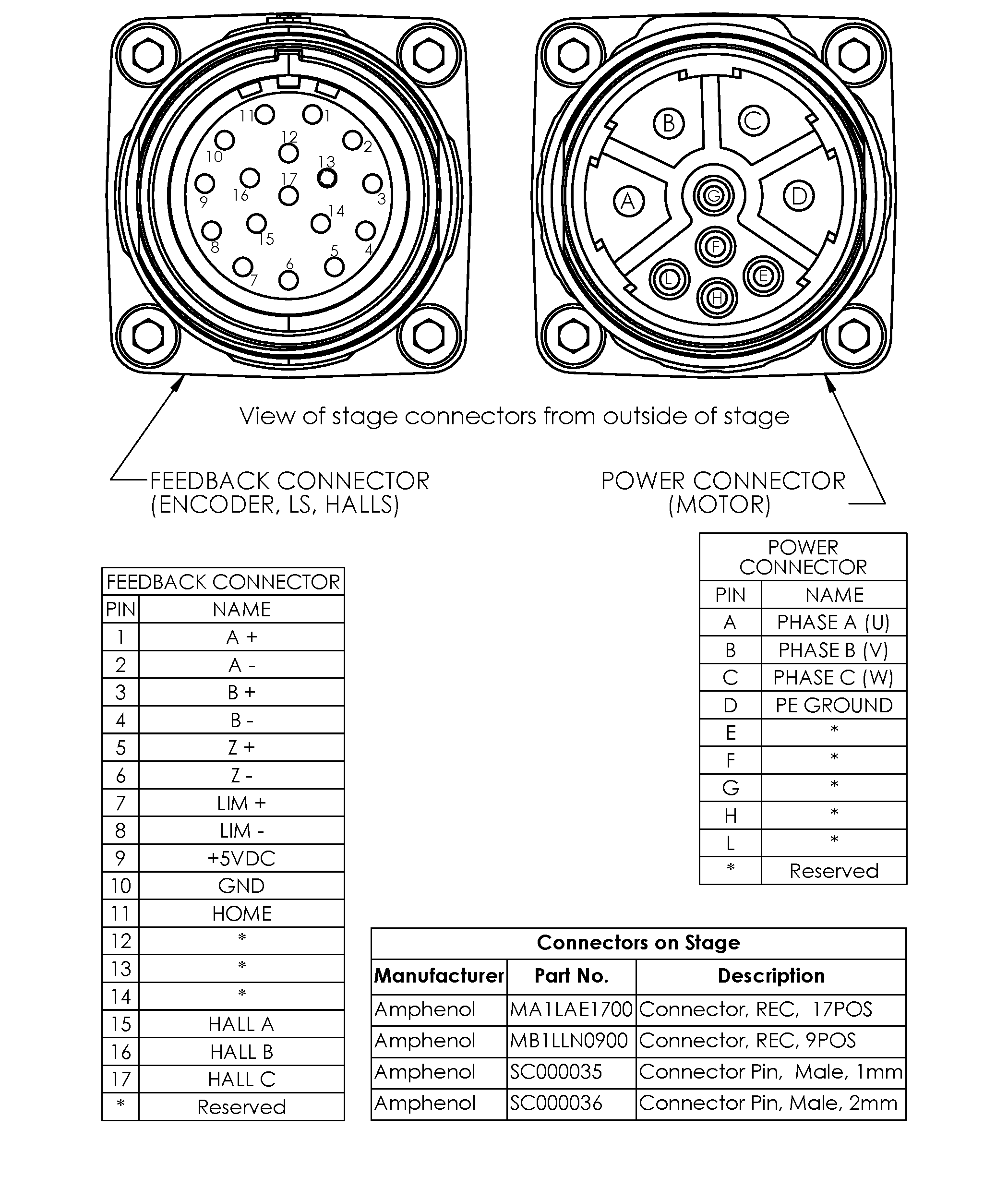

- High resolution linear encoder
- Recirculating ball linear ways
- Side seals
- Extended life flat cable
The LM7 series stages are designed for high loading capacities and long travels to suit a variety of applications. This linear motor stage is built for high duty cycles and long life and can attain high velocities for factory automation and semiconductor processing equipment. The recirculating ball linear ways and the linear motor offer extremely smooth operation and velocity control. This stage has exceptional levels of accuracy, repeatability, flatness and straightness. The flat cable increases service life over traditional round cables. Side seals and a hard cover make it excellent choice for dirty environments. The LM7 Series stages can be stacked to create X, Y and Z motion.
| Product Family | LM7 |
| Encoder Type | 40µm Linear SS Scale |
| Additional Options | Side Seals |
| Travel (mm) | 1000 |
| Drive Type | Linear Motor |
| Motor | Ironcore Linear Servo |
| Precision Class | Standard Precision |
| Accuracy (μm) | 30 |
| Encoder Output | 1Vp-p |
| Force X Peak (N) | 510 |
| Force X Continuous (N) | 250 |
| Force Y (N) | 1000 |
| Force Z (N) | 1500 |
| Flatness (μm) | 25 |
| Height (mm) | 86.5 |
| Length (mm) | 1388.0 |
| Limit Switches | Yes |
| Encoder Resolution (μm) | 40μm period |
| Repeatability (μm) | 1 |
| Linear Velocity (mm/s) | 1000 |
| Moment X (N·m) | 400 |
| Moment Y (N·m) | 600 |
| Moment Z (N·m) | 200 |
| Moving Mass X (kg) | 6.48 |
| Pitch (arc-sec) | 30 |
| Stage Mass (kg) | 39.6 |
| Straightness (μm) | 25 |
| Width (mm) | 279.0 |
| Yaw (arc-sec) | 20 |
