CXY Series- 2 Axis Linear Motion

Motorized XY stages with travels from 50 to 300mm. Crossed roller or recirculating linear guideways. Ball screw side drives are available with multiple motor configurations. Linear or rotary encoders available with optional brake for vertical applications. Available with open aperture for microscopy applications.

No Products found matching the selected criteria. Please refine your search criteria.

compact, high precision xy stage, crossed roller ways

CXY-C-050-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 10
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 50
High Precision XY Stage with Brushless Servo Ball Screw Drive, Crossed Roller Ways, and Linear Encoder

CXY-C-050-BS-A-M-P-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 4
  • Repeatability (μm): 0.5
  • Drive Type: Ball Screw
  • Travel (mm): 50
cxy-c-100-bs-a-h-s-0-00_03_jpg

CXY-C-100-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 100
Precision XY Stage with Brushless Servo Ball Screw Drive, Crossed Roller Ways, Rotary Encoder, and Power off Brake

CXY-C-100-BS-A-H-S-D-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 100
cxy-c-100-bs-a-m-p-0-00_03_jpg

CXY-C-100-BS-A-M-P-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 4
  • Repeatability (μm): 0.5
  • Drive Type: Ball Screw
  • Travel (mm): 100
cxy-c-100-bs-a-m-s-0-00_03_jpg

CXY-C-100-BS-A-M-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Drive Type: Ball Screw
  • Travel (mm): 100
cxy-c-100-bs-b-n-s-0-00_00_jpg

CXY-C-100-BS-B-N-S-0-00 Precision XY Motion Platform

  • Motor: Stepper
  • Accuracy (μm): 20
  • Repeatability (μm): 3
  • Drive Type: Ball Screw
  • Travel (mm): 100
cxy-c-100-hs-c-n-s-0-00_00_jpg

CXY-C-100-HS-C-N-S-0-00 Precision XY Motion Platform

  • Motor: Hybrid Stepper lead screw
  • Accuracy (μm): 30
  • Repeatability (μm): 5
  • Drive Type: Hybrid Stepper Leadscrew
  • Travel (mm): 100

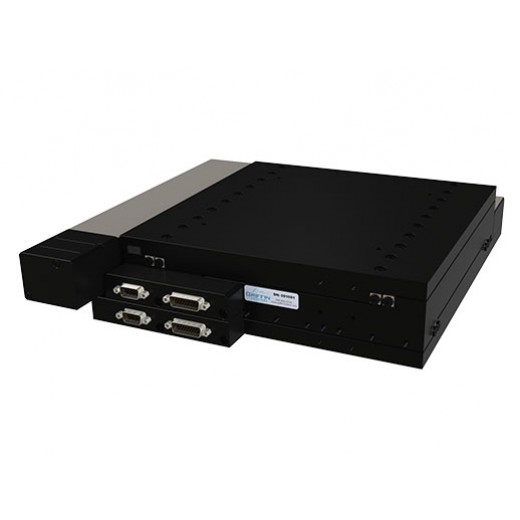

cxy-c-150-bs-a-h-s-0-00_02_jpg

CXY-C-150-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 150
cxy-c-150-bs-a-m-p-0-00_08_jpg_1

CXY-C-150-BS-A-M-P-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 6
  • Repeatability (μm): 0.5
  • Drive Type: Ball Screw
  • Travel (mm): 150
cxy-c-150-bs-a-m-s-0-00_08_jpg

CXY-C-150-BS-A-M-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Drive Type: Ball Screw
  • Travel (mm): 150
cxy-c-150-bs-b-n-s-0-00_01_jpg

CXY-C-150-BS-B-N-S-0-00 Precision XY Motion Platform

  • Motor: Stepper
  • Accuracy (μm): 25
  • Repeatability (μm): 3
  • Drive Type: Ball Screw
  • Travel (mm): 150
cxy-c-150-hs-c-n-s-0-00_01_jpg

CXY-C-150-HS-C-N-S-0-00 Precision XY Motion Platform

  • Motor: Hybrid Stepper lead screw
  • Accuracy (μm): 40
  • Repeatability (μm): 5
  • Drive Type: Hybrid Stepper Leadscrew
  • Travel (mm): 150
cxy-c-200-bs-a-h-s-0-00

CXY-C-200-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 25
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 200
cxy-c-200-bs-a-m-p-0-00

CXY-C-200-BS-A-M-P-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 8
  • Repeatability (μm): 0.5
  • Drive Type: Ball Screw
  • Travel (mm): 200
cxy-c-200-bs-a-m-s-0-00_00

CXY-C-200-BS-A-M-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 12
  • Repeatability (μm): 1
  • Drive Type: Ball Screw
  • Travel (mm): 200
cxy-c-200-bs-b-n-s-0-00

CXY-C-200-BS-B-N-S-0-00 Precision XY Motion Platform

  • Motor: Stepper
  • Accuracy (μm): 30
  • Repeatability (μm): 3
  • Drive Type: Ball Screw
  • Travel (mm): 200
cxy-c-200-hs-c-n-s-0-00

CXY-C-200-HS-C-N-S-0-00 Precision XY Motion Platform

  • Motor: Hybrid Stepper lead screw
  • Accuracy (μm): 45
  • Repeatability (μm): 5
  • Drive Type: Hybrid Stepper Leadscrew
  • Travel (mm): 200
cxy-c-300-bs-a-h-s-0-00_04_jpg

CXY-C-300-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 30
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 300
cxy-c-300-bs-a-m-p-0-00_03_jpg

CXY-C-300-BS-A-M-P-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 12
  • Repeatability (μm): 1.0
  • Drive Type: Ball Screw
  • Travel (mm): 300
cxy-c-300-bs-a-m-p-0-00_03_jpg_1

CXY-C-300-BS-A-M-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 20
  • Repeatability (μm): 1
  • Drive Type: Ball Screw
  • Travel (mm): 300
cxy-c-300-bs-b-m-s-0-00_02

CXY-C-300-BS-B-M-S-0-00 Precision XY Motion Platform

  • Motor: Stepper Motor
  • Accuracy (μm): 20
  • Repeatability (μm): 1.0
  • Drive Type: Ball Screw
  • Travel (mm): 300

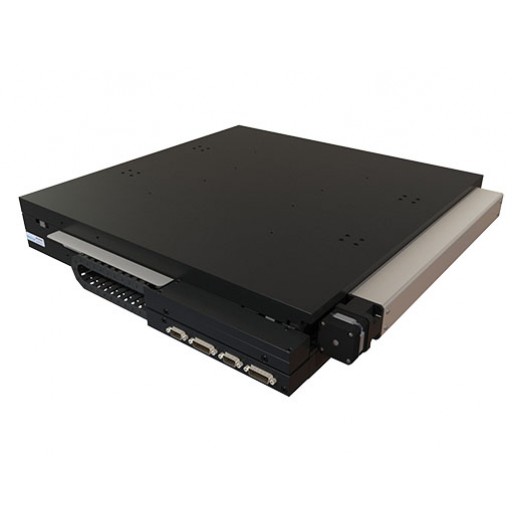

cxy-c-300-bs-b-n-s-0-00_02

CXY-C-300-BS-B-N-S-0-00 Precision XY Motion Platform

  • Motor: Stepper
  • Accuracy (μm): 30
  • Repeatability (μm): 3
  • Drive Type: Ball Screw
  • Travel (mm): 300
cxy-o-150-bs-a-h-s-0-00_02_jpg

CXY-O-150-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 150
cxy-o-150-bs-b-n-s-0-00_00_jpg

CXY-O-150-BS-B-N-S-0-00 Precision XY Motion Platform

  • Motor: Stepper
  • Accuracy (μm): 25
  • Repeatability (μm): 3
  • Drive Type: Ball Screw
  • Travel (mm): 150
cxy-o-150-hs-c-n-s-0-00_00_jpg

CXY-O-150-HS-C-N-S-0-00 Precision XY Motion Platform

  • Motor: Hybrid Stepper lead screw
  • Accuracy (μm): 40
  • Repeatability (μm): 5
  • Drive Type: Hybrid Stepper Leadscrew
  • Travel (mm): 150
cxy-o-300-bs-a-h-s-0-00_04_jpg

CXY-O-300-BS-A-H-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 30
  • Repeatability (μm): 2
  • Drive Type: Ball Screw
  • Travel (mm): 300
High Precision XY Stage with Brushless Servo Ball Screw Drive, Recirculating Linear Guide Ways, and Linear Encoder

CXY-O-300-BS-A-M-P-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 12
  • Repeatability (μm): 1.0
  • Drive Type: Ball Screw
  • Travel (mm): 300
cxy-o-300-bs-a-m-s-0-00_02_jpg

CXY-O-300-BS-A-M-S-0-00 Precision XY Motion Platform

  • Motor: Brushless Servo
  • Accuracy (μm): 20
  • Repeatability (μm): 1
  • Drive Type: Ball Screw
  • Travel (mm): 300
cxy-o-300-bs-b-n-s-0-00_011

CXY-O-300-BS-B-N-S-0-00 Precision XY Motion Platform

  • Motor: Stepper
  • Accuracy (μm): 35
  • Repeatability (μm): 5
  • Drive Type: Ball Screw
  • Travel (mm): 300
